Celloger Pro Automated live cell imaging system

Prod Code: CRCLG-P01
Get a Quote
Celloger Pro Automated live cell imaging system
Celloger® Pro is an innovative live cell imaging system that redefines research capabilities. With its exceptional image quality and unmatched convenience, it empowers researchers with advanced features. By enabling real-time cell monitoring inside the incubator, it allows for seamless observation and tracking of cellular dynamics without disrupting the natural growth environment. The system's dual fluorescence and bright-field microscopy enable simultaneous visualization of multiple markers, while the multi-point time-lapse imaging captures dynamic cellular events across different locations.

KEY FEATURES:

  • Real-time cell monitoring inside an incubator
  • User-interchangeable objective lens option
  • Dual fluorescence microscopy for enhanced imaging
  • Intuitive interface and user-friendly tools
  • Multi-point time-lapse imaging capability

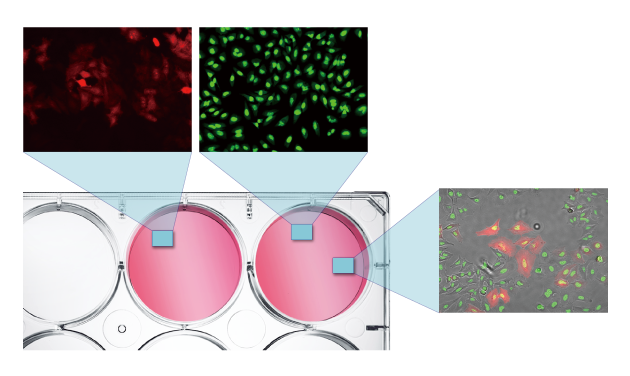

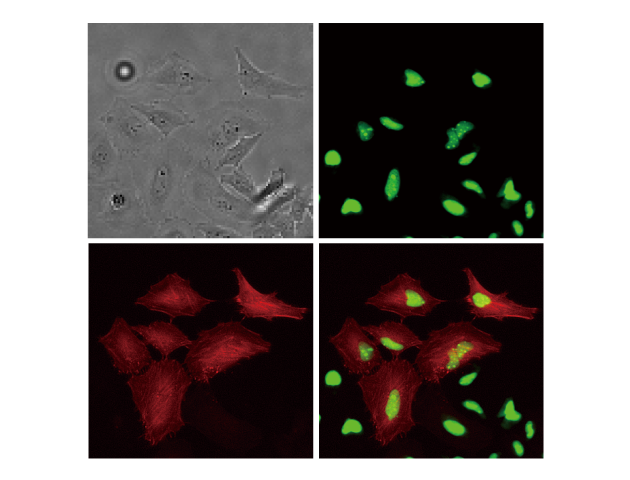

Multicolor fluorescence and brightfield imaging

    • With its dual color fluorescence and bright-field imaging capabilities, Celloger® Pro enables the capture of high-quality and high-resolution images.
    • With enhanced scanning methods and innovative merging techniques, the system reduces scanning time, enabling researchers to analyze cellular dynamics with exceptional clarity and efficiency.

Real-time monitoring inside the incubator

    • Celloger® Pro is designed to facilitate real-time monitoring of cells inside an incubator. By simply placing the device within the incubator and connecting it to an external PC, researchers are able to remotely observe cells in real-time.
    • With the time-lapse function, cell images are captured according to the schedule set by the researcher; the images can then be easily converted into time-lapse videos.

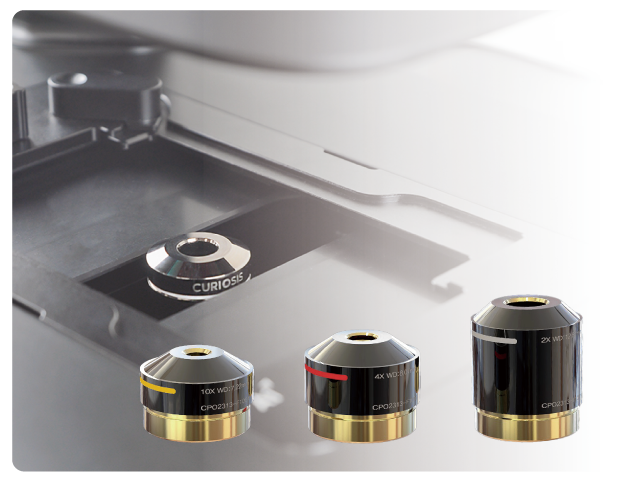

User-interchangeable objective lens

  • Celloger® Pro offers user-interchangeable objective lenses, providing flexibility to researchers based on their specific study requirements. With options such as 2X, 4X, and 10X objectives, users can switch between these lenses by hand.

Capturing images from multiple positions

  • Celloger® Pro enables imaging of samples in multiple positions by automatically moving the integrated camera while keeping the vessel and sample fixed on the stage. This ensures a stable environment for the cells, resulting in enhanced image quality and precise research outcomes.

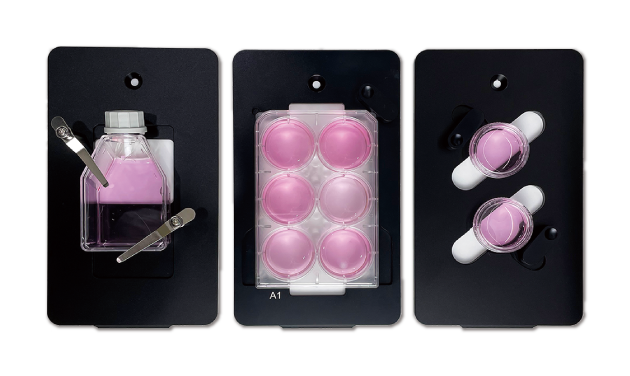

Compatible with different vessel types

  • The system is compatible with different cell culture vessels such as well plates (up to 96 wells), flasks, dishes, and slides, and can switch between them by simply replacing the vessel holders for specific needs.

Specifications:

Imaging modes
Brightfield, Dual fluorescence (Green & Red)
Objective Lens
2X, 4X, 10X (User-interchangeable)
Fluorescence
Green : EX (470/40), EM (540/50)
Red : EX (562/40), EM (641/75)
Stage
Fully motorized XYZ (Fixed stage, camera moving type)
Camera
High sensitivity 5.0 MP CMOS
Field-of-view
2X (2.08 x 1.55 mm), 4X (1.46 x 1.09 mm), 10X (0.72 x 0.54 mm)
Focus
Autofocus, Manual focus
Imaging methods
Single/multicolor, stitching, stacking, time-lapse, real-time recording
Included software
Scan App, Analysis App
Dimensions (H x W x L)
250 x 338 x 412 mm
Weight
9.6 kg
Culture vessels
Well plate up to 96-well, flask, dish, slide
File export format
TIFF, AVI (JPEG, PNG)
Operating environment
10~40℃, 20~95% humidity
Power requirement
100-240V, ~50/60Hz
O/S required
Windows 10 and above
Incubator specification
Above 200L (recommended)
