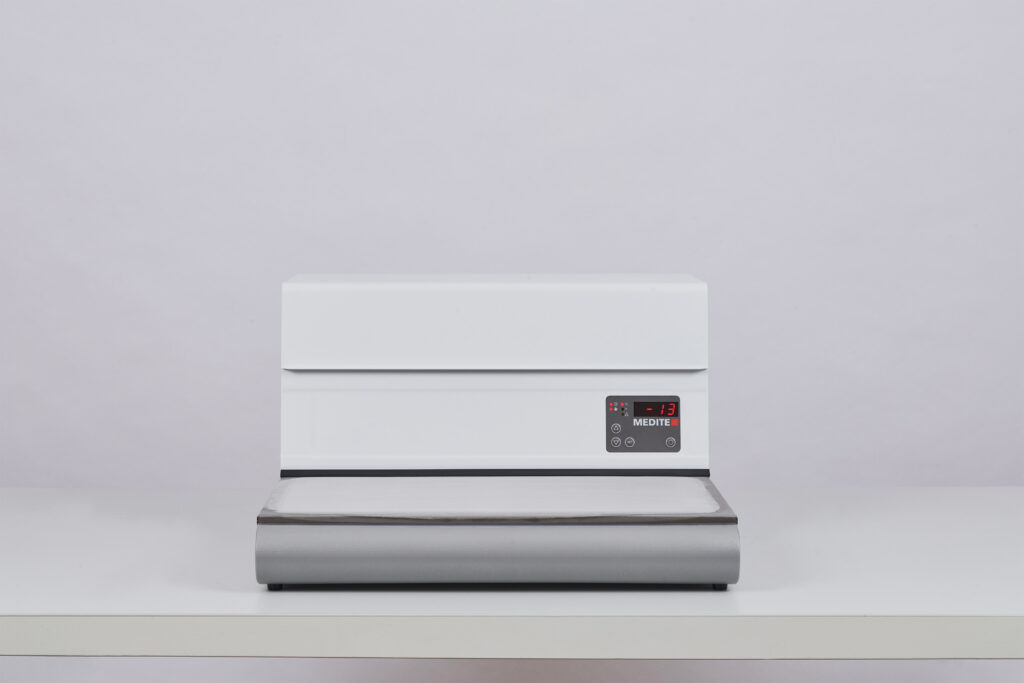

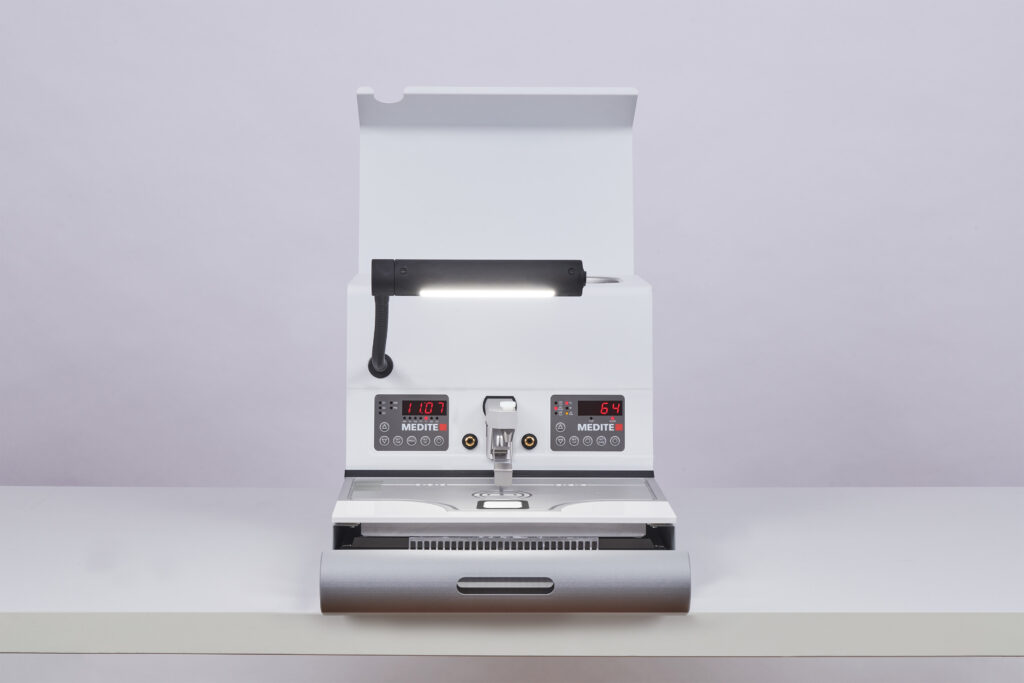

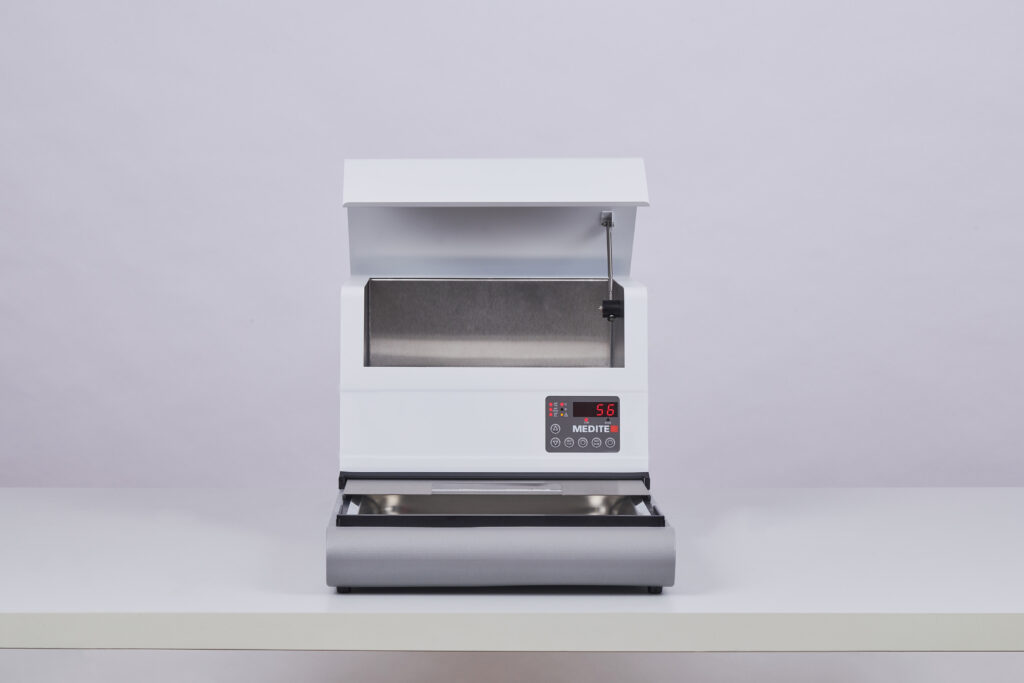

The TES 99 is a flexible, reliable paraffin embedding center, consisting of three different units for heating, dispensing and cooling of tissue samples in paraffin. The units can be arranged individually in order to optimize the work process for personal preferences, e.g. to optimize for left-handed operation. Each unit works independently with own temperature control, and can therefore be used as a single device in the laboratory. The work surfaces are designed ergonomically to prevent fatigue after long periods of use. The heating unit has a spacious preheating chamber for embedding molds as well as a cassette depot with removable cassette tray made of stainless steel. Embedding cassettes and almost any type of sample baskets can be accommodated in it.The dispenser unit has a large paraffin tank with a capacity of 5.7 liters. The dispensing process can be carried out either manually or by foot switch via the outlet tap. Blocks that already solidified can be placed onto the flat heated outlet tap to be melted again.
The work area can be illuminated as required. An optionally available magnifying glass can also be attached to the lamp. Two connections for heated forceps and six forceps slots are easily accessible around the outlet tap. It reaches down to -5 ° C. There is also a drawer under the dispenser that collects excess paraffin during operation and can then be easily cleaned. The cooling unit offers space for up to 110 paraffin blocks that can be cooled at a maximum temperature of -15 °C on the stainless steel surface at the same time. Alternatively, a small model of the cooling unit is available that offers space for up to 80 paraffin blocks. In addition to its attractive design, the TES 99 Embedding Center also impresses with its high functionality and quality. The front edges of the individual units are rounded and insulated for operator comfort. The housing is made of powder-coated steel and easy-to-clean.
