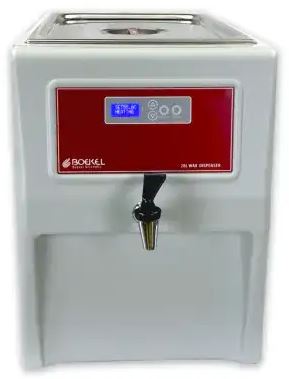

The Boekel Large Wax Dispenser is ideal for larger histology laboratories that require large volumes of paraffin wax when embedding tissue samples. The Large Wax Dispenser has a maximum capacity of 28 liters (7.4 gallons) of wax and is the largest in the industry. This device can be used as the primary source of paraffin wax or to supplement tissue processors and embedding centers. The unit has a heated and filtered spigot to make sure the wax flows freely during operation. The digital control system is easy to use and has a timer based Hot Start system that ensures the wax is melted prior to operation. The unit has a stainless-steel lid and chamber to stay corrosion free for years of use. Boekel Scientific is known worldwide for manufacturing high quality equipment and all histology equipment is designed and manufactured in the U.S.A and supplied with a two-year warranty.

Industries largest wax capacity for high throughput use
Quickly Melts – from pellets to molten wax in as little as 4 hours!
Hot Start feature will automatically start the warming based on set time to eliminate waiting
Bright easy to use digital display
Stainless steel lid and wax chamber to resist corrosion
Heated and filtered wax spigot to keep the wax flowing quickly
Two-year Warranty
UL, CE, CSA approved

Part Numbers

1456XL (115 VAC 50/60 Hz)

1456XL-2 (230 VAC 50/60 Hz)

Capacity

28 Liters / 7.4 gallons

Temperature Range

Ambient+5°C to 65°C

Accuracy

+/- 1.0°C

Default Temperature

55°C / 131°F

Overtemp Safety Cut Off

88°C / 190°F

Display

LCD with text and numeric display – Shows set temperature and Actual Temperature

Lid

Removable, Stainless Steel

Clock / Timer

Built in Clock for Automatic Starting – Hot Start

Tap/Spigot

Heated, non-drip with a filter for particulates

Tap Height

9” from base. Will work with containers up to 9.5” tall.

Electrical

1456XL (115 VAC 50/60 Hz) UL and CSA Certified

1456XL-2 (230 VAC 50/60 Hz) CE Approved

Power

750W, 6.5 amps for the 115V,

750W, 3.3amps for the 230V

Regulatory

UL/CSA/CE – RoHs certified

Unit Dimensions (W/D/H)

14″/35.5cm x 25.5″/65cm x 18.75″/48cm

Chamber Dimensions (W/D/H)

11.5″/29.2cm x 19.25″/49cm x 7.5″/19cm

Weight (lbs/kg)

42 lbs / 19kg
