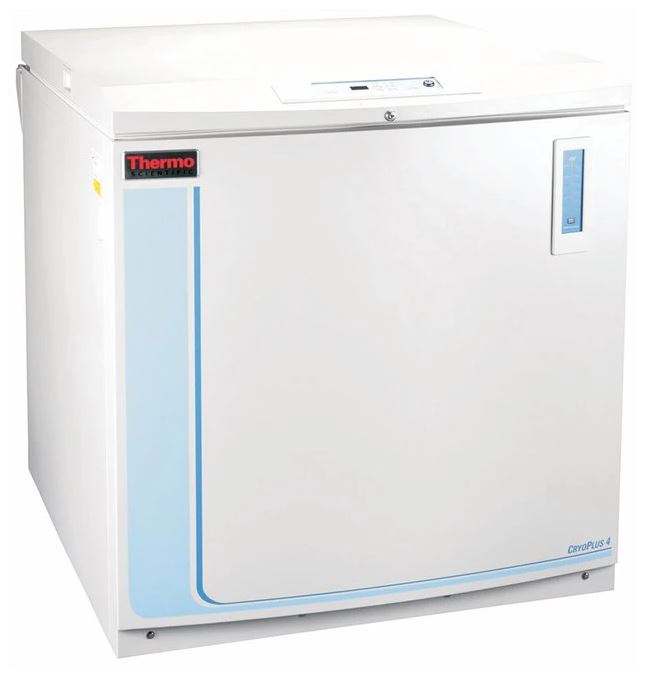

Increase valuable laboratory storage space with Thermo Scientific™ CryoPlus™ Storage Systems, which store up to 38,500 vials (2.0 mL). The ideal combination of liquid nitrogen, storage reliability and microprocessor technology, the CryoPlus Series LN2 Storage System provides precise and accurate control over all parameters without complicated programming.

Key Features

16 preset audible and visual alarm combinations provide maximum product protection
Automatic defogger incorporated into the manual fill index to improve visibility during retrieval
Liquid level sensor and fill port within vacuum space, for maximum storage and sensor protection
Front-mounted key lock and rear-mounted recessed power switch; control panel can also be locked
Temperature sleeve (included) provides colder temperatures and efficient vapor phase operation

Microprocessor Control

Precise liquid level control with over 16 parameters; with autofill system
Control panel mounted on top for convenient access and easy touchpad programming
Digital temperature display sensor located under the lid; this indicates the highest temperature reading inside the tank
24 tricolor LEDs continuously display actual liquid nitrogen level and high-level/low-level setpoints
Alarm contacts for remote monitoring of storage tank conditions

Durable Construction

Low-profile tank with vacuum-insulated, stainless-steel chamber
Counterbalanced lid with foamed-in-place, high density polyurethane insulation; dedicated vent; 100% clearance
Two independent, flexible lid gaskets reduce moisture migration into the chamber
Heavy-duty casters
2 mL vials based on rack configuration

Ordering Information:

Optional racks, canisters, frames and risers allow you to create an organized inventory system that provides optimum storage in liquid or vapor phase. Contact your Customer Service Representative for details.

Includes:

CryoPlus 1 has 0.5 in. 45° flare, 4 ft. (1.2 m) flexible hose. CryoPlus 2, 3, and 4 come with 0.5 in. 45° flare, 6 ft. (1.8 m) flexible hose.

Warranty varies by country, please contact us for details

Not for use for IVD/MD in some countries.
Certifications/Compliance UL listed to U.S. and Canadian requirements
Capacity (English) 19.49 cu. ft.
Capacity (Metric) 552 L
Vial Capacity 36,400 to 38,500
Electrical Requirements 100 – 120 V 50/60 Hz
Voltage 100/120 V
Frequency 50/60 Hz
Dimensions (L x W x H) Exterior 50 x 43.5 x 47 in. (127 x 110.5 x 119.4 cm)
Weight (English) 820 lb.
Weight (Metric) 371.9 kg
Shipping Weight (English) 1070 lb.
Shipping Weight (Metric) 485.3 kg
Diameter (English) 39.5 in.
Diameter (Metric) 100.3 cm
Depth (English) Interior 27.5 in.
Depth (Metric) Interior 69.9 cm
Height (English) Exterior 47 in.
Height (Metric) Exterior 119.4 cm
Length (English) Exterior 50 in.
Length (Metric) Exterior 127 cm
Width (English) Exterior 43.5 in.
Width (Metric) Exterior 110.5 cm
Type Auto-Fill LN2 Cryo
Holds 38500 Vials (2 mL)
Insulation Polyurethane
Material Stainless Steel (Chamber)
Monitoring Options Alarm Contacts, Remote
No. of Doors 1
Unit Size Each
