HIGH CAPACITY 4 x 750ml swing out rotor, Up to 68 x 15ml or 28 x 50ml

Ideal for Tissue Culture applications

Advanced programming with automatic rotor recognition
Available with refrigeration

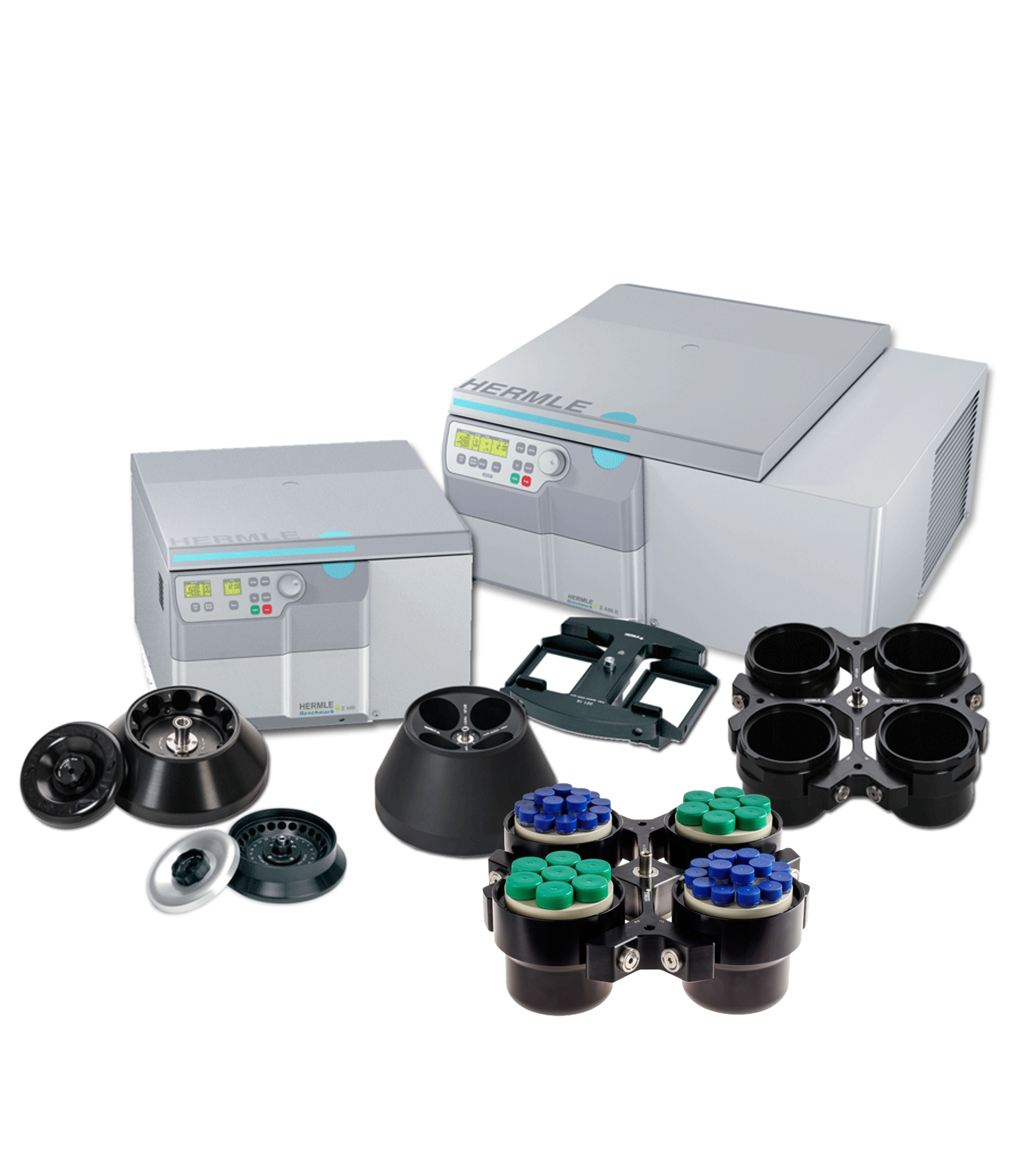

The Z446 universal centrifuge series offers the highest capacity of any benchtop Hermle-Benchmark model. With air-craft grade, premium alloy construction, the 4 x 750ml swing out rotor can withstand centrifugal forces upwards of 4,500 xg with full loads of up to 28 x 50ml, 68 x 15ml tubes, and up to 20 x microplates.

Advanced microprocessor controls allow for instant rotor identification,which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone. Rotor exchange is simple and requires less than one minute. An included rotor wrench can be used to loosen and install all rotors. As soon as the rotor is placed on the motor shaft, the identification process activates and the installed rotor code is displayed on the backlit LCD display.

Specifications
Speed Range : 200 to 16,000 rpm
Max. RCF : 24,325 xg
Max. Capacity : 4 x 750ml
Temp. Range : -20°C to 40°C (Z446-K only)
Dimensions : 21.3 x 26.4 x 15.4 in.
(54.1 x 67 x 39.1 cm.)
28.7 x 26.4 x 15.4 in. (-K)
(72.9 x 67 x 39.1 cm.)
Timer : up to 99 hr, 59min and continuous
Weight : 174 lbs / 244 lbs (-K)
Electrical : 115V, 60Hz
Power (Watts) : 600W / 1630W (-K)
