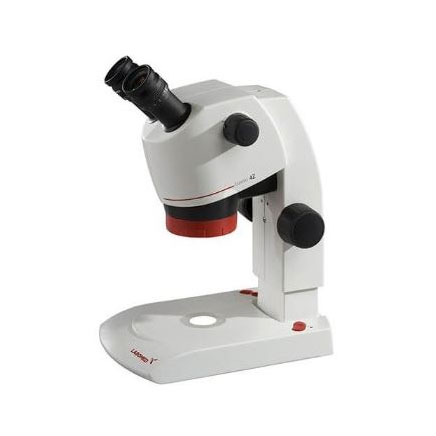

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.
Luxeo 4Z Advantages:

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous Intensity control is managed through a control dial on ring light.

Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.
Microscope Specifications:

Optical System

Greenough

Magnification

4.4:1 Zoom Ratio

Eyepiece

Widefield 10x/18mm (interchangeable)

Diopter Correction

+ / – 5 diopters

Viewing Body

Integrated Binocular, 45º, 52-74mm diopter adjustment

Working Distance

100mm

Magnification Range

8x to 35x Continuous

Object Field Diameter

6.6 to 28.5 mm

Eye Guards

Rubber, Retractable

Illumination Control

Incident / Transmitted (“Oblique” Settings) / Combined illumination control buttons with rheostat dial for light intensity control

Incident Light

+ / – 30º Oblique illumination and variable intensity control dial

Incident Light Method

Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)

Transmitted Light

3-LED super bright glow screen, low heat emission

LED Life

Up to 25,000 hours

Light Quality

Homogeneous daylight (6500ºK), free of UV and IR emmissions

Power Supply

Universal 100V – 240V, 50/60Hz integrated power supply with voltage flux stabilizer
