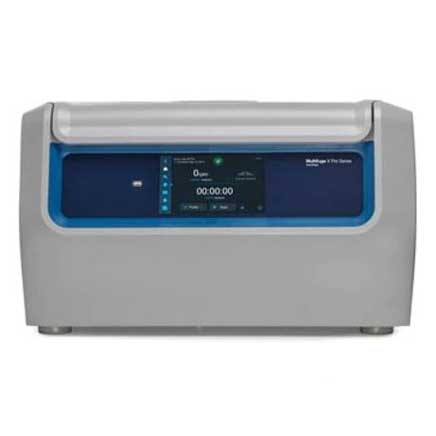

Pro series touch screen enables easier programming for quicker results–plus easily access and track all runs, rotor life and centrifuge health. With capacity up to 4L, including 196 blood tubes and 96 15mL conical tubes, AutoLock for fast rotor exchange
Simple Operation and Design

Full color intuitive touch screen for fast programming, centrifuge health monitoring and up to 100 program storage
Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
Detailed operation information, including display of set and actual parameters, maximizes run performance and temperature accuracy for improved sample protection
Easily adjust speed, time and temperature, even during the run, with the convenient keyboard for direct input
Innovative lid-locking technology enables one finger downward motion for easy closing and locking of centrifuge lid, even on tall benches
Double temperature management system displays the air temperature in the chamber as well as the sample temperature, ensuring accurate control of the sample temperature during the run

Auto-Lock™ III Rotor System

Secure locking system allows easy push-button installation and exchange of rotors
Saves time in switch between applications
Easy access to the chamber enables quick cleaning, a healthier working environment and longer unit life

ClickSeal™ Bucket Sealing System

Biocontainment system seals with a snap; eliminates screw caps and complicated clips
Glove-friendly, one-handed open/close capability
Certified by CAMR™ in Porton Down, UK

SMARTSpin™ Technology

Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
Optimizes safety and improves separations

Space-Saving Design

Compact size conserves workspace on benchtop or floor
Ergonomic height and curved design ensure comfortable sample handling and cleaning of unit

Energy Efficient

Design saves up to 40% of energy on industry standard protocols such as blood separations or conical-tube processing
Programmable centrifuge compressor start and stop can save both time and energy

Accel/Decel Profiles Choices of 9 Accel / 10 Decel Rates
Drive System Direct, Brushless induction low profile motor
Net Weight 120 kg
Program Storage Up to 100 Programs, including multi-step programming
Run Time Up to 99 hrs 59 minutes 59 seconds
Standards ISO 14971, ISO 13485, ISO 9001
Temperature Range -10 C to +40 C, +/- 2C
Capacity Max in TX-1000: 196 5/7mL blood tubes, 148 9/10 mL blood tubes, 96 15mL conical tubes, 40 50mL conical tubes, 6 microplates; 4 x 1000 mL BioBottles (with TX-1000 rotors)
Type Benchtop
Max. RCF Fixed Angle: 25830 x g (with 30 x 2 mL rotor), Swing-Out: 7164 x g (with BIOShield 1000A rotor)
Max. Speed Fixed Angle: 15,200 x g (with 30 x 2 mL rotor), Swing-Out: 6000 x g (with BIOShield 1000A rotor)
Refrigerated Yes, CFC-Free, Pre-Temp Available
Hertz 50 / 60 Hz
Voltage 120V
Display Full Color Touch Screen Interface
Height (English) Exterior 14.2 in
Height (English) Open Cover 33.9 in
Height (Metric) Exterior 361 mm
Height (Metric) Open Cover 861 mm
Length (English) Exterior 27.2 in
Length (Metric) Exterior 690 mm
Noise Level <64 dB(A) (Rotor F15-8x50c; 14500 RPM; ) Timer Option to count up or down Width (English) Exterior 29.4 in Width (Metric) Exterior 746 mm Wattage 1450 W Certifications/Compliance EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15 Includes Printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord for the according country supply voltage, declaration of conformity Description Thermo Scientific Multifuge X4R Pro-MD, 120V Electrical Requirements 120V Dimensions (L x W x H) Exterior 690mm x 746mm x 361mm Controller Type Microprocessor For Use With (Equipment) Purchase of Thermo Scientific rotor and accessories required for operation Material front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLED). The unit feet are out of rubber. Depth (Metric) Exterior 690 mm Depth (English) Exterior 27.2 in Rotor Included No Warranty 5 Year Limited Programmability Via Touch Screen; Including programmabile Pulse options Unit Size Each
