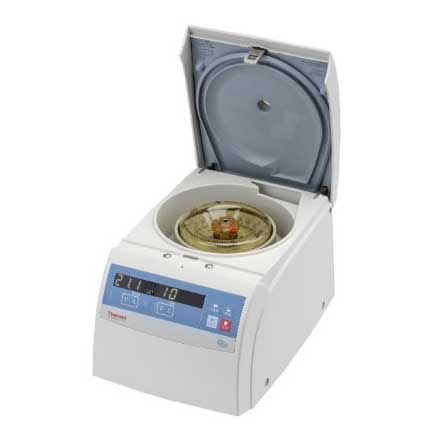

Thermo Scientific® Pico® microcentrifuges combine power, versatility and convenience in a safe, compact, easy-to-use lab instrument. Designed to accelerate your routine sample preparation processes by providing high-speed and generous capacity along with outstanding safety and convenience. Available in two speed options, the Pico 17 microcentrifuge is perfect for routine laboratory work, while the Pico 21 is ideal for high-end research applications, reducing spin times by up to 20%.

Powerful, versatile and easy-to-use microcentrifuge
ClickSeal bio-containment 24 x 1.5/2.0ml rotor

Extensive Rotor Selection

Standard rotor runs 24 tubes in a single row with equalized g-forces for reproducibility, form 1.5 to 2.0 mL tubes to mini-preps and spin columns
A unique dual row rotor holds 18 x 1.5/2.0mL and 18 x 0.5mL tubes, eliminating the need for adapters
Special high-capacity rotors support 0.5mL microtubes, 0.2mL PCR tubes and hematocrit capillary tubes

1 Year Parts & Labour Warranty.
Specifications Pico 17 Pico 21
Max RCF 17,000 x g 21,100 x g
Max Speed 13,300 rpm 14,800 rpm
Max Noise Level

56 dBA
Acceleration/Deceleration Rates

8/9 seconds; 12/12 seconds (120V models)
Time Set Range

1 min – 99 min; 1 min increments + HOLD mode
Certifications

CSA certified, CE marked, IVD compliant, Certified Biosafety
Technical Standards

IEC 61010-1, IEC 61010-2, IEC 61010-020
Dimensions, W x D x H

243 x 352 x 225 mm (9.56 x 13.8 x 8.86 in)

Ordering Information
Description

Pico 17

Pico 21

Item No.

Item No.
Thermo microcentrifuge, includes 24 x 1.5/2.0 mL rotor with ClickSeal biocontainment lid

IS14034 (120V)

IS14038 (120V)

IS14035 (230V)

IS14039 (230V)
Thermo microcentrifuge, includes hematocrit rotor

IS14042 (120V)

N/A

IS14043 (230V)

N/A
Thermo microcentrifuge, includes 24 x 1.5/2.0 mL rotor with ClickSeal biocontainment lid and dual row 18 x 2.0/0.5 mL rotor with screw-on lid

N/A

IS14044 (120V)

N/A

IS14045 (230V)
