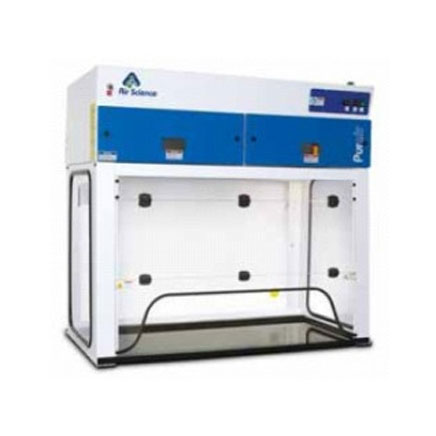

The Purair® Advanced Series ductless fume hoods have more features than the Basic series for users who need more options. At the heart of the Purair® fume hood product line is the innovative Multiplex™ Filtration Technology that creates a safe work environment over the widest range of applications in the industry. Advanced Features:

Air Velometer – an analog air velocity meter in the user’s field of vision provides independent backup to the electronic airflow alarm
Double-Hinged, Self-Locking Front Sash
Control Panel – Electronic controls and displays include switches for the blower and lights, an electronic hour counter and low airflow alarm
A filtered air sample port allows manual filter monitoring
Dynamic Filtration Chamber prevents any possible leakage of contaminated air by pressurizing the fan plenum (positive air) and depressurizing the filter compartment (negative air)
Safety Filter – can install an additional carbon or HEPA/ULPA safety filter to add an extra layer of protection
Track & Wheel System – The filter glides in on a wheel and track system, then clamps tightly against the filter gasket to prevent filter tears and maintain filter integrity
PLUS all the features of the Basic Models

SPECIFICATIONS
Model No.

P10

P10-XL

P15

P20

P25

P30

P40

P10-XT

P10XL-XT

P15-XT

P20-XT

P25-XT

P30-XT

P40-XT

P10-BT

P10XL-BT

P15-BT

P20-BT

P25-BT

P30-BT

P40-BT
Airflow CFM

145

145

220

295

365

440

590
Face Velocity FPM

100

100

100

100

100

100

100
Noise, dBA, 1 meter

<50 <50 <53 <53 <53 <56 <67 Lighting 2 X 15 watts Construction White epoxy coated steel frame and head unit. Clear sides and back panel Blower ebmpapst™ centrifugal fan Electrical 110V, 60 Hz (standard) – 220V, 50 Hz (specify if required) Electrical Switches Main On/Off Monitoring Low airflow alarm, standard Filter Specifications Pre-Filter Electrostatic, 1 lbs/.45 kg Main (1) 9.6 kg (22 lbs) (1) 9.6 kg (22 lbs) (1) 9.6 kg (22 lbs) (2) 20 kg (44 lbs) (2) 20 kg (44 lbs) (2) 20 kg (44 lbs) (3) 30 kg (66 lbs) Safety Filter – Carbon (1) 5 kg (11 lbs) (1) 5 kg (11 lbs) (1) 5 kg (11 lbs) (2) 9.6 kg (22 lbs) (2) 9.6 kg (22 lbs) (2) 9.6 kg (22 lbs) (3) 15 kg (33 lbs) Safety Filter – Biological (1) HEPA / ULPA (1) HEPA / ULPA (1) HEPA / ULPA (2) HEPA / ULPA (2) HEPA / ULPA (2) HEPA / ULPA (3) HEPA / ULPA Options & Accessories HEPA Safety FilterULPA Safety Filter An additional carbon, HEPA or ULPA safety filter exceeding ANSI/AIHA Z9.5 requirements – can be installed after the main filter Filter Saturation Alarm An electronic gas sensor emits audio and visual alerts when the main filter needs to be changed Spill Tray Polypropylene spillage tray, available in black or white, slides out for easy cleaning Monitair® Controller Microprocessor controller monitors cabinet operating parameters, airflow, containment and filter condition; emits audio and visual alerts if conditions become unsafe Mobile Base Stand Provides a lower storage shelf; accommodates wheelchair access; Locking casters fix the hood in place Fixed Base Stand Provides storage space below and a cup sink, swan neck faucet and service fixtures ADA Compliance Provides wheelchair access and lowered remote controls Polypropylene Construction Cabinets are available in all polypropylene construction Duplex Electrical Outlet Two NEMA-1420R receptacles with ground fault interrupter. 110V service standard; Service Valve Cabinets can be fitted with service fixtures such as petcocks, faucets or valves Stainless Steel Hanging Rod Hanging rod spans the width of the cabinet Cup Sink, Mounts into Tray Cup sink is fitted into the base tray Remote Control The remote control consists of a hand held box connected via cable to the head unit and can be used inside the work zone. Includes On/Off switch and blower speed control UV Lamp A UV lamp is available for overnight decontamination of interior surfaces. The UV kit includes a timer, door microswitch fully closing front sash and UV filtering clear polycarbonate panels. The UV operation must comply with local codes and safety practices STANDARD HEIGHT MODELS Model No. Dimensions Weight Metal Polypropylene Internal Height External (WxDxH) Net P10 P10-PP 79.7 cm (31.375”) 75 x 69.5 x 116.5 cm (29.5 x 27.375 x 45.875”) 48 kg (106 lb) P10XL P10XL-PP 86 x 69.5 x 116.5 cm (34 x 27.375 x 45.875”) 61 kg (134 lb) P15 P15-PP 100 x 69.5 x 116.5 cm (39.5 x 27.375 x 45.875”) 62 kg (136 lb) P20 P20-PP 125 x 69.5 x 116.5 cm (49.5 x 27.375 x 45.875”) 93 kg (206 lb) P25 P25-PP 150 x 69.5 x 116.5 cm (59 x 27.375 x 45.875”) 101 kg (224 lb) P30 P30-PP 175 x 69.5 x 116.5 cm (69 x 27.375 x 45.875”) 136 kg (300 lb) P40 P40-PP 243.8 x 69.5 x 116.5 cm (96 x 27.375 x 45.875”) 184 kg (404 lb) TALL MODELS Model No. Dimensions Weight Metal Polypropylene Internal Height External (WxDxH) Net P10-XT P10-XT-PP 96.5 cm (38”) 76.2 x 69.5 x 134.6 cm (30 x 27.375 x 53”) 50 kg (111 lb) P10XL-XT P10XL-XT-PP 86.4 x 69.5 x 134.6 cm (34 x 27.375 x 53”) 64 kg (141 lb) P15-XT P15-XT-PP 99.1 x 69.5 x 134.6 cm (39 x 27.375 x 53”) 65 kg (143 lb) P20-XT P20-XT-PP 124.5 x 69.5 x 134.6 cm (49 x 27.375 x 53”) 98 kg (216 lb) P25-XT P25-XT-PP 149.9 x 69.5 x 134.6 cm (59 x 27.375 x 53”) 106 kg (235 lb) P30-XT P30-XT-PP 175.3 x 69.5 x 134.6 cm (69 x 27.375 x 53”) 143 kg (315 lb) P40-XT P40-XT-PP 243.8 x 69.5 x 134.6 cm (96 x 27.375 x 53”) 196 kg (427 lb) STANDARD HEIGHT, SHALLOW DEPTH MODELS Model No. Dimensions Weight Metal Polypropylene Internal Height External (WxDxH) Net P10-BT P10-BT-PP 79.7 cm (31.375”) 76.2 x 61 x 116.5 cm (30 x 24 x 45.875”) 48 kg (106 lb) P10XL-BT P10XL-BT-PP 86.4 x 61 x 116.5 cm (34 x 24 x 45.875”) 61 kg (134 lb) P15-BT P15-BT-PP 99.1 x 61 x 116.5 cm (39 x 24 x 45.875”) 62 kg (136 lb) P20-BT P20-BT-PP 124.5 x 61 x 116.5 cm (49 x 24 x 45.875”) 93 kg (206 lb) P25-BT P25-BT-PP 149.9 x 61 x 116.5 cm (59 x 24 x 45.875”) 102 kg (224 lb) P30-BT P30-BT-PP 175.3 x 61 x 116.5 cm (69 x 24 x 45.875”) 136 kg (300 lb) P40-BT P40-BT-PP 243.8 x 61 x 116.5 cm (96 x 24 x 45.875”) 221 kg (487 lb)
