Thermo Scientific™ TSX Series high-performance lab refrigerators are designed with features that support sample protection and sustainability objectives for the storage of media, reagents, chemotherapy, pharmaceutical and other medical and laboratory-grade storage requiring 2° to 8°C. The Series’ V-drive technology is designed to provide temperature uniformity that continually adapts to user patterns, offering significant energy savings without compromising protection.

Featuring over 450W of reserve refrigeration capacity, the TSX series has the power to protect your product from temperature swings as a result of frequent and prolonged door access, large product loads, and other activities that introduce hear to the cabinet.

The TSX Series delivers the performance and quality you need, in addition to the low sound, low energy, and exceptional user experience you deserve.
Product Line TSX Series

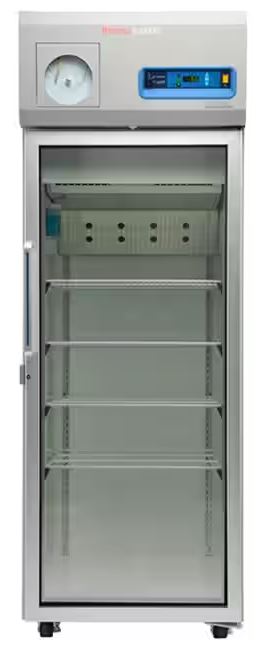

Description TSX Series High-Performance Refrigerator, Glass Door
Certifications/Compliance UL, cUL, ENERGY STAR, ENERGYSTAR, UL
Capacity (English) 23 cu. ft.
Capacity (Metric) 650 L
Electrical Requirements 115V, 60Hz
Voltage 115 V
Frequency 60 Hz
Amperage 15 A
Plug Type NEMA 5-15
Dimensions (L x W x H) Exterior 37.8 x 28 x 78.6 in. (96.2 x 71.1 x 199.6 cm)
Dimensions (D x W x H) Interior 28.5 x 24 x 58 in. (72.3 x 61 x 147.3 cm)
Weight (English) 385 lb.
Weight (Metric) 175 kg
Shipping Weight (English) 450 lb.
Shipping Weight (Metric) 204 kg
Display Microprocessor
Refrigerant R290
Smart View Compatibility Smart-Vue Compatible
Chart Recorder Optional
Temperature (Setpoint) 3°-7°C (5°C)
Depth (English) Interior 28.5 in.
Depth (Metric) Interior 72.3 cm
Height (English) Exterior 78.6 in.
Height (English) Interior 58 in.
Height (Metric) Exterior 199.6 cm
Height (Metric) Interior 147.3 cm
Width (English) Interior 24 in.
Width (Metric) Interior 61 cm
Defrost Automatic
Width (English) Exterior 28 in.
Width (Metric) Exterior 71.1 cm
Depth (English) Exterior 37.8 in.
Type High-Performance Refrigerator
Depth (Metric) Exterior 96.2 cm
Green Features Energy efficient
Door Style Glass
Monitoring Options Alarm, Recorder
No. of Doors 1
Shelves 4
Unit Size Each

The drive for sample integrity and security

Designed to safely store media, reagents, chemotherapy, pharmaceutical and other medical and laboratory-grade products requiring a temperature range of 2°C to 8°C
Unique V-drive technology is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
Easy to use microprocessor control with interior light, setpoint security and alarms
Standard door locks provide comfort and assurance

Enabling compliance

Tested to GMP Clean Room Class A / ISO 5 & 6 (ISO EN 14644-1) with easy to clean surfaces support USP <797> and <800> hazardous drug compounding and other clean room environments
Tested and certified to conform with the design and safety standards of UL 471, 61010, and CE Directive 2011/65/EU and 2015/863

Designed for an ergonomic and comfortable experience

Ergonomically designed door handle with a soft-touch grip
The controller is angled to help prevent neck strain
Convenient, easy to clean and adjustable epoxy coated full and half shelves
Whisper quiet with a sound level of 52 dBA, enabling end users to work alongside the refrigerator without distraction
Bright, LED interior lighting
Self-closing multipaned glass or solid doors with 90° stop to assist with inventory loads

Verified sustainability

US EPA ENERGY STAR Certified with up to 40% less energy usage than conventional refrigerant models*
ACT Environmental Impact Factor Label Certified, providing third-party verification of the sustainable impacts of the product, its operations, and its end of life. **
Natural, R290 refrigerants and water-blown foam make the TSX Series compliant with EU F-GAS regulations, U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), and other Global Environmental Regulations.
Manufactured in an award-winning, zero-waste to landfill facility

Ready for connectivity and monitoring

Thermo Scientific™ DeviceLink™ Connect ready, enabling you to have a connected experience with your unit so you always—and anywhere— know the safety of your samples and the performance of your refrigerator or freezer.
Compatible with wireless monitoring systems and remote alarm contacts including our Thermo Scientific™ Smart-Vue™ Pro wireless monitoring systems

Make it your own

Alternate Door swing configuration and door types
Extra and Alternate wire baskets, shelves, and drawers
Free-standing or factory-installed chart recorders
Stainless Steel interior finish
E-Lock Adapter kits
