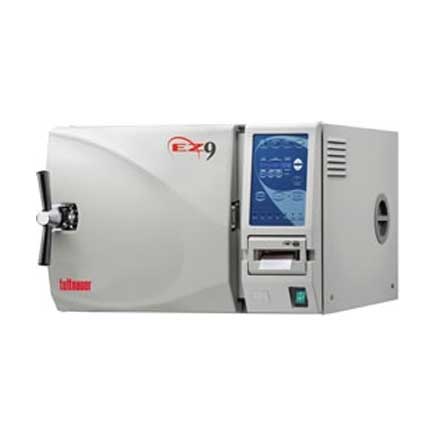

With the simplicity of one touch design all your sterilization and drying needs are fulfilled. The Tuttnauer fully automatic autoclaves will fill, sterilize, exhaust and dry at the touch of a button.

Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches
High efficiency air pump circulates hot air after the sterilization cycle for fast drying
HEPA filter 0.2µm air filter (replaceable)
Bright and easy-to-read panel
Pre-programmed cycles for: unwrapped insturments, wrapped/packs, glassware and additional drying cycle
All program parameters can be customized and stored
Automatic shut off at the end of both the sterilization and dry cycles
Audible and visual cycle interruption alert
Double safety locking device prevents door from opening while chamber is pressurized
Low water sensor prevents activation of sterilization cycle when there is insufficient water in the chamber or reservoir
Constant monitoring of temperature and pressure for sterilization
Power outage recovery system
Door design prevents steam from coming in contact with control panel
510k clearance for dental handpieces
Drain valve is located on the front, allowing for quick and easy draining of water reservoir

Certifications: cUL and CE Warranty: 2 year parts and labour Optional: Internal printer which documents date, time, temperature and pressure. Note: Model EZ10k™ requires a voltage between 220V and 235 V for proper operation. When applicable a buck/boost transformer (0.5KVA) may be required.
Item No. EZ9™ EZ10™ EZ10k™ Kwiklave
Chamber Dimensions Ø x L 230 x 470mm (9 x 18”) 254 x 475mm (10 x 19”) 254 x 475mm (10 x 19”)
Volume 19L/5 gal 23L/6 gal 23L/6 gal
Overall Dimensions DxWxH 545 x 510 x 365mm (21.5 x 20 x 14.4”) 545 x 510 x 365mm (21.5 x 20 x 14.4”) 545 x 510 x 365mm (21.5 x 20 x 14.4”)
Standard Cassettes 2 full/2 half 3 full/3 half 3 full/3 half
Tray Dimensions DxWxH 415 x 170 x 20mm (16.3 x 6.7 x 0.8”) 415 x 170 x 20mm (16.3 x 6.7 x 0.8”) 415 x 170 x 20mm (16.3 x 6.7 x 0.8”)
No. of Trays 3 4 4
Standard Unwrapped Cycle Time Cold: 27 mins/Hot: 13 mins Cold: 30 mins/Hot: 14 mins Cold: 21 mins/Hot: 11 mins
Voltage(V) Freq.(Hz) 120V / 50/60Hz 120V / 50/60Hz 230V / 50/60Hz
Power(W) Current(A) 1400W / 12A 1400W / 12A 2200W / 10A
Shipping Weight kg (lbs) 43 (95) 43 (95) 43 (95)
