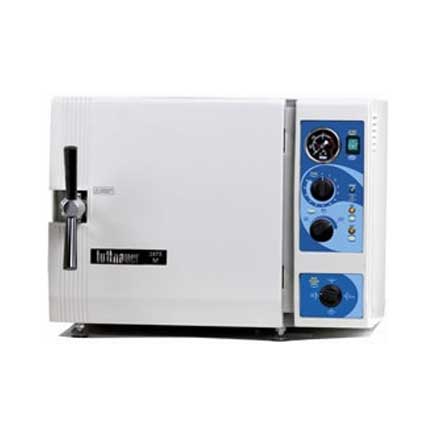

3870M – Manual Autoclave

Prod Code: 3870M

Description

Our largest manual table top autoclave. Perfect for multi-doctor practices, clinics or surgery centers. 15” x 30” chamber accommodates longer instruments or a large number of small instruments. Capacity for 15 full size IMS cassettes. 1 year parts and labor warranty.

Overview:

Automatic shut off at the end of both the sterilization and dry cycles
A long life electro polished chamber and door
Double safety locking device prevents door from opening while chamber is pressurized
Drain valve is located on the front, allowing for quick and easy draining of water reservoir
Dual safety thermostat to protect against overheating
International certifications
Supplied with a 3 shelf stand (30”Wx36”Dx34”H)
1 year parts and labor warranty

Specifications

Overall Dimensions (DxWxH): 34.5” x 26” x 20.6” (875mm x 665mm x 525mm)

Chamber Volume: 85 Liter (22 Gallon)

Chamber Dimensions: 15” x 30” (385mm x760mm)

Tray Capacity: 2 Trays

Tray Dimensions:

26.6” x 11.3″ x 1” (675mm x 286mm x 25mm)
26.6” x 13.8″ x 1” (675mm x 351mm x 25mm)

Standard Cassette Capacity: 15 Full cassettes

Voltage & Frequency: 230V (50-60Hz)

Power & Current: 3000W, 13.6A
Requires voltage 220-235
When applicable a buck/boost transformer (0.5KVA) may be required

Shipping Weight: 278 Lbs (126 kg) Including Stand

Warranty: 1 year parts and labor

NOTE:

Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”.

Designed to meet the most current sterilization standards
UL/EN 61010-1
FDA
ISO 13485:2003
ISO 9001:2000
Features
Hefty capacity and optimal performance
The capacity to meet the most demanding offices, the 3870M accommodates longer instruments or a large number of small instruments. The low maintenance manual autoclave is the ideal choice that fits all your needs.
Efficient and easy operation
Automatic shut off at the end of both the sterilization and dry cycles
Ultimate Safety
Double safety locking device prevents door from opening while chamber is pressurized
Convenient
Supplied with a 3 shelf stand for easy storage
Simple Drainage
Valve is conveniently located at the front to allow quick and easy reservoir drainage
Durable Chamber
The long-life electro polished chamber and door are made to last
Overheating Protection
The dual safety thermostat and automatic shut-off deliver reliable protection from overheating
Sterilization Programs
Standard unwrapped cycle Hot start: 23 min, Cold Start 32 min. Cycle times are approximate and may vary depending on instrument loads.
