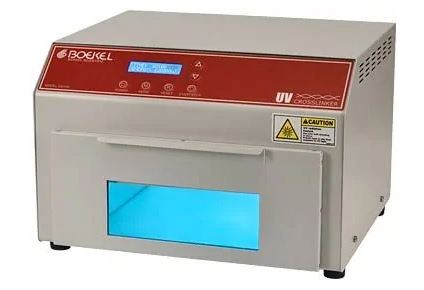

Boekel Scientific UV Crosslinker AH (115V/230V)

Whether you are crosslinking DNA or RNA, conducting Northern, Southern dot or slot blot analysis or UV curing, The Boekel Scientific UV Crosslinker AH (Adjustable Height) provides a safe, time-efficient solution with a controlled amount of ultraviolet radiation. The researcher now gets more accurate results by utilizing our unique-to-the-market, adjustable height feature. This feature gives much more true-to-life readings by keeping samples on the base of the chamber, at the same distance from the bulbs as the fixed UV sensor. Instead of building up samples to get them closer to the bulbs simply adjust the bulbs to get them closer to your sample! Our microprocessor detects the exact energy of the bulbs and compensates accordingly.
Features

The unit comes equipped with 5 x 254 nm Shortwave Bulbs
Large UV protective window allows for easier process inspection
Two modes of operation – Energy or Time
Open Door Safety mechanism
Small footprint
UL/CSA/CE Approved

Bulb Options:
920-0305 254nm UV Replacement Bulb (Clear)
920-0306 306nm UV Replacement Bulb (White)
920-0307 368nm UV Replacement Bulb (Black )

Whether you are crosslinking DNA or RNA, conducting Northern, Southern dot or slot blot analysis or UV curing, The Boekel Scientific UV Crosslinker AH provides a safe, time-efficient solution with a controlled amount of ultraviolet radiation. The researcher now gets more accurate results by utilizing our unique-to-the-market, adjustable height feature. This feature gives much more true-to-life readings by keeping samples on the base of the chamber, at the same distance from the bulbs as the fixed UV sensor. Instead of building up samples to get them closer to the bulbs simply adjust the bulbs to get them closer to your sample! Our microprocessor detects the exact energy of the bulbs and compensates accordingly.

The unit comes equipped with 5 254 nm Shortwave Bulbs
No more manual calibration required when switching between wavelengths. The Boekel UV Crosslinker AH comes calibrated for 254 nm Shortwave Bulbs as well as 306 nm and 368 nm bulbs. Change your bulbs and select your bulb choice on the display – that’s it!
Large UV protective window allows for easier process inspection
Two modes of operation – Energy or Time
Open Door Safety mechanism
Energy Efficient electronic ballasts
Small footprint
UL/CSA/CE Approved

Ambient Temperature Operating Range: 16°C to 28°C
Maximum Time Setpoint: 999m 59s in 1 second increments
Maximum Energy Setpoint: 9,999,900µJ in 100µJ increments
Supply Ratings: 234100: 120VAC±10%, 50/60 Hz
234100-2: 230VAC±10%, 50/60 Hz
Power Rating: 80W
Net Weight: 30 lb
Exterior Dimensions (maximum): 15 1/8”W x 14 3/8”D x 10 1/4”H
Chamber Dimensions (maximum): 11.5″ w x 12.5″ D X4.1″ H(Adjustable Down to 1.6″ H)
